These are 2 aerial view photographs of my shop.



The shop was an old barn that was torn down to the foundation and rebuilt. The foundation was the starting point. The wall corners were cut to a 45 deg. angle and then 2 X 6 walls constructed. The shop size is 28 ft X 36 ft and is fully insulated. I use a York 65,000 btu furnace for heat, and I keep the shop heated all year round. It never goes below 50 deg. F, this keeps the machinery from rusting. I have a 26 ft line-shaft in the shop that drives a lot of the machinery. My house and shop are situated on top of a hill and have a beautiful view of the Pavilion valley here in western NY. As you can see from the photographs of the shop, it is dug into the side of the hill. I spend a lot of time down in my shop which has taken me years to get it where it is today. I wired the shop with a 150 amp 220 service and also ran air lines around the shop to make it convenient to get air to the machines. I still need to drywall the walls and ceiling to finish up the inside. There just never seems to be enough time in a day. The following are some pictures of the machines in my shop. Hope that you will enjoy looking at them.


Machines & Tools

Garvin Horizontal Mill No.21
Garvin Machine Company New York
Table size - 6" wide X 36" long / Power feed
Have a Bridgeport "J" head mounted on mill

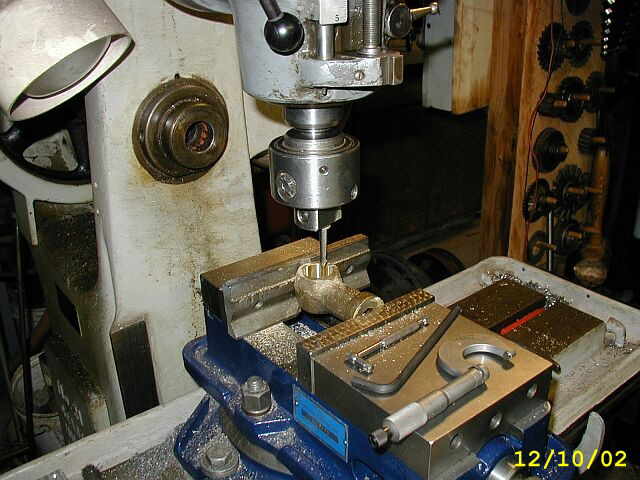

This is a Model "J" Bridgeport head, that I now have mounted on the horizontal mill.


Champion Mfg. Co. Phila. Pa.
Champion 22" Drill Press / Boring Machine
11" stroke, Power feed


12" X 42" Metal Lathe
Atlas mfg. by Clausing
Aloris Tool holder

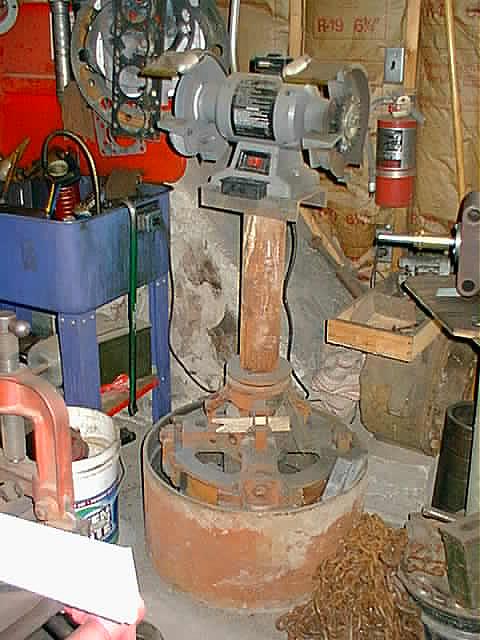

(2) 8" 1 HP Pedestal Grinder


12" Hendy Shaper
adjustable stroke
power feed table & tool holder


Miller 185 Mig Welder
With gas regulator & tank


"TIP" Sand Blasting Cabinet
(very handy tool)
Check out their web site at Tp Tools


Kwik-Way
Valve Facing Machine
(real nice machine)


Lucas Horizontal Boring Mill
3" Spindle, #5 MT
3 - phase


LeBlond 18" X 54" Lathe
3 - phase
(with Taper attachment)


DoAll Vertical Band Saw
Model ML with / Blade Welder


Marvel Power Hacksaw
Model 4B



Machine & Tool List

Garvin Horizontal Mill No.21
Garvin Machine Company New York
Table size - 6" wide X 36" long / Power feed
Have a Bridgeport "J" head mounted on mill

Champion Mfg. Co. Phila. Pa.
Champion 22" Drill Press / Boring Machine
11" stroke, Power feed

12" Hendy Shaper
adjustable stroke
power feed table & tool holder

DoAll Vertical Band Saw
Model ML with / Blade Welder

12" X 42" Metal Lathe
Atlas mfg. by Clausing
Aloris Tool holder

Dumore Toolpost Grinder

Miller 185 Mig Welder
With gas regulator & tank

Hobart Stickmate Welder
235 AC / 160 DC

(2) 8" 1 HP Pedestal Grinder

"TIP" Sand Blasting Cabinet
(very handy tool)
Check out their web site at Tp Tools

Kwik-Way
Valve Facing Machine
(real nice machine)

Lucas Horizontal Boring Mill
3" Spindle, #5 MT
3 - phase

LeBlond 18" X 54" Lathe
3 - phase
(with Taper attachment)

Marvel Power Hacksaw
Model 4B
